Burlington Northern Santa Fe Railway
Southwest Division
Seligman Subdivision

Mohave County, AZ
Last Observation Date
Lat 35° 23' 08" N
20 December 2002
Lon 113° 39' 35" W

Radio Frequencies
Road
160.650 MHz
ATCS
897.8875 MHz (MCP)

936.8875 MHz (BCP)


Naming convention according to author's rules and logic. Your rules might be different. Vive la difference!

DIRECTIONS

From Kingman, it's a 28-mile drive east on Route 66 to Valentine, home of the Bureau of Indian Affairs local office. From Seligman, it's a 55 mile drive west on Rt 66. Valentine Rd crosses the right-of-way about halfway between East and West Valentine CPs. Access to the CPs themselves is on foot.


COMMENTS

Valentine is in the middle of Crozier Canyon, home to many years worth of photographs of Santa Fe iron. Be good to yourself and get food and fuel back in Seligman or in Kingman. Once you're out here it's a ways to the next Circle K.


INDICATIONS

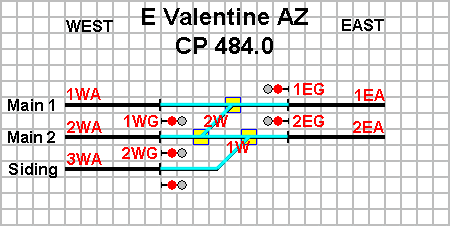

CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW K13
    Reverse 1RW K14
  Pair 2 Normal 2NW K11
    Reverse 2RW K12

Tracks 1 W Approach 1WA K34
    E Approach 1EA K35
    In Plant 1T K31
  2 W Approach 2WA K36
    E Approach 2EA K37
    In Plant 2T K32
  Siding W Approach 3WA K38
    In Plant 3T K33

Signals Track 1 W Approach 1WG K21
    E Approach 1EG K22
  Track 2 W Approach 2WG K25
    E Approach 2EG K24
  Siding W Approach 3WG K23

Other   Track 1 Plant Lock $1PL K27
    Track 2 Plant Lock $2PL K28

Indication Bits currently unknown or unused: K15, K16, K17, K18, K41-K48, K51-K58

CONTROLS

CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW C13
    Reverse 1RW C14
  Pair 2 Normal 2NW C11
    Reverse 2RW C12

Signals Track 1 W Approach 1WG C21
    E Approach 1EG C22
  Track 2 W Approach 2WG C25
    E Approach 2EG C24
  Siding W Approach 3WG C23

Other   Track 1 Plant Lock $1PL unk
    Track 2 Plant Lock $2PL unk

Control Bits currently unknown or unused: C15, C16, C17, C18, C26, C27, C28



The information contained here is based completely upon the author's personal observations or information gathered from sources of unknown reliability. Do not rely upon this information for any purpose. The author disclaims responsibility for any actions taken based upon any information contained herein. Do not trespass nor encourage others to do so. Read the signs and behave accordingly. Pick up others' trash and leave none of your own. Take only pictures and leave only foot (and tire) prints.
