Burlington Northern Santa Fe Railway
Southwest Division
Seligman Subdivision
near Grand Canyon Caverns, Arizona
Last Observation Date
Lat 35° 28' 09" N
21 December 2002
Lon 113° 32' 10" W
Radio Frequencies
Road
160.650 MHz
ATCS
897.8875 MHz (MCP)

936.8875 MHz (BCP)

Naming convention according to author's rules and logic. Your rules might be different. Vive la difference!
DIRECTIONS

From Seligman, drop off I40 at exit 121 and head west on Route 66 about 37 miles, passing through downtown (or what there is of it) Peach Springs. Along the south side of the highway you'll find a poorly marked turnoff that heads south about 1 mile to the right-of-way at Truxton station. Head railroad east about 2 miles along the north side of the tracks to Cherokee station.

COMMENTS

You are pretty far from real civilization, so be very well prepared out here. During the winter, it is very cold and snowstorms are not uncommon if there's inclement weather. The path along the right-of-way is VERY silty and I am sure that during wet weather you could become a permanent piece of the scenery out here if you don't know how to manage mud.

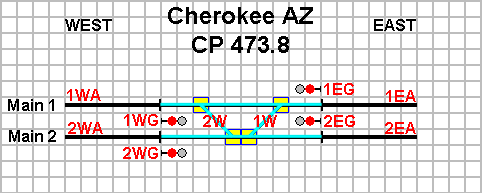

INDICATIONS
CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW I13
    Reverse 1RW I14
  2 Normal 2NW I11
    Reverse 2RW I12

Tracks 1 W Approach 1WA I33
    E Approach 1EA I34
    In Plant 1T I31
  2 W Approach 2WA I35
    E Approach 2EA I36
    In Plant 2T I32

Signals Track 1 W Approach 1WG I21
    E Approach 1EG I22
  Track 2 W Approach 2WG I23
    E Approach 2EG I24

Other   Track 1 Plant Lock $1PL I25
    Track 2 Plant Lock $2PL I26

Indication Bits currently unknown or unused: I15-I18, I27, I28, I37, I38, I41-I48, I51-I58

CONTROLS
CP Object
Index
Definition
ATCS Mnemonic
Bit Location

Switches 1 Normal 1NW C13
    Reverse 1RW C14
  2 Normal 2NW C11
    Reverse 2RW C12

Signals Track 1 W Approach 1WG C21
    E Approach 1EG C22
  Track 2 W Approach 2WG C23
    E Approach 2EG C24

Other   Track 1 Plant Lock $1PL

unk
    Track 2 Plant Lock $2PL unk

Control Bits currently unknown or unused: C15-18, C25-C28, C31-C38


The information contained here is based completely upon the author's personal observations or information gathered from sources of unknown reliability. Do not rely upon this information for any purpose. The author disclaims responsibility for any actions taken based upon any information contained herein. Do not trespass nor encourage others to do so. Read the signs and behave accordingly. Pick up others' trash and leave none of your own. Take only pictures and leave only foot (and tire) prints.
