Shocking new amplifier

Is finally built. I bought three of these a couple years ago from kuyaya520 on eBay and they’ve languished since then, heat-shrink protected and tie-wrapped in place, like for the truck’s half-deaf GRE PSR-600 scanner.

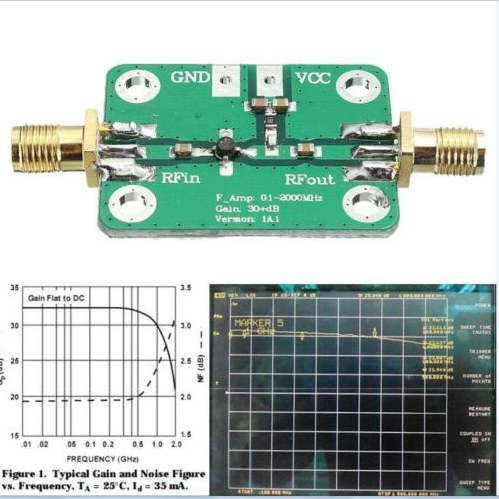

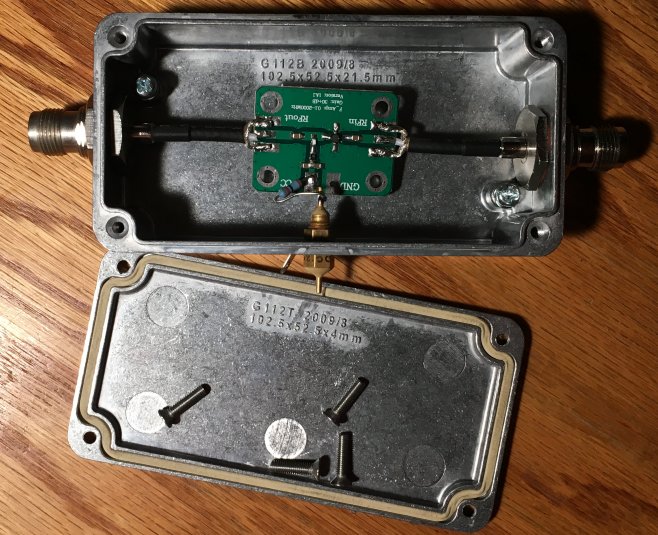

Finally put one in my new die-cast case that I got 10 of last month, and used a 82 ohm resistor to set the operating voltage to around 10 vdc when running off 13.8 vdc. According to the eBay page about the amp, its best gain and noise figure is around 9-10 vdc.

Checked out the gain, and it’s pert darn near what the vendor says it is. Don’t have a simple way to do noise figure. Need to get myself an ENR noise diode so I can do y-factor.

This amp will likely go into the truck to replace the tie-wrapped kludge… I’m starting to get reasonably good at assembling these things.
